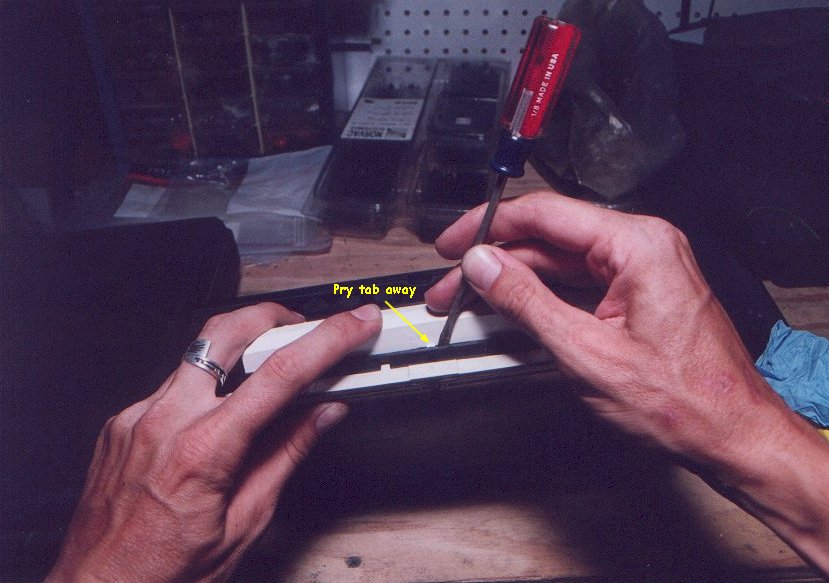

Removing the green filter from the top of the gauge cluster is fairly easy. Using a thin bladed screwdriver, carefully pry the white light housing away and up from its base. See the following images:

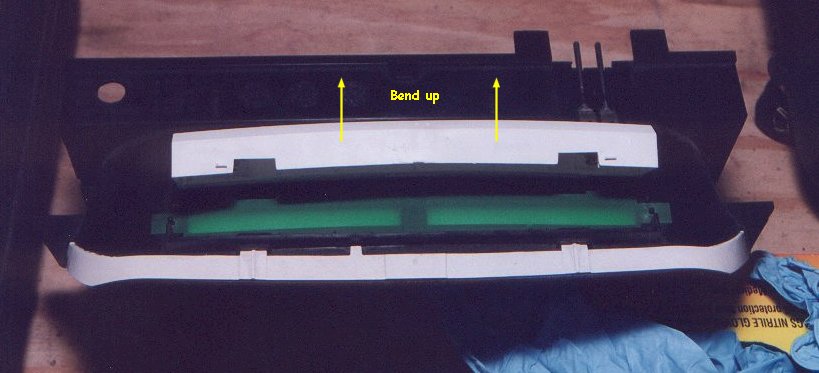

Carefully bend the light housing back enough to expose the green filter so you can remove it. If you will be installing the UV lamp then cut the power supply metal strips that hold the housing to the cluster.

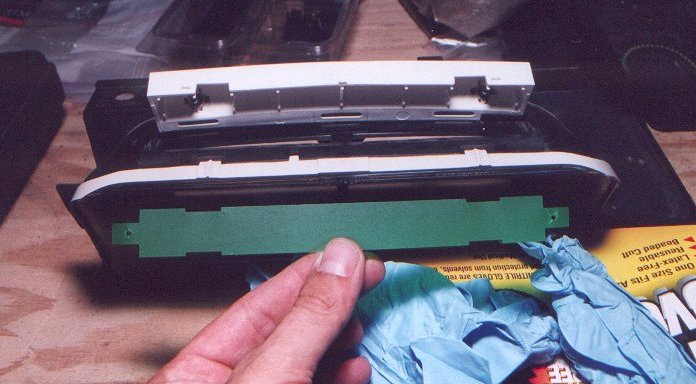

The filter easily comes out.
