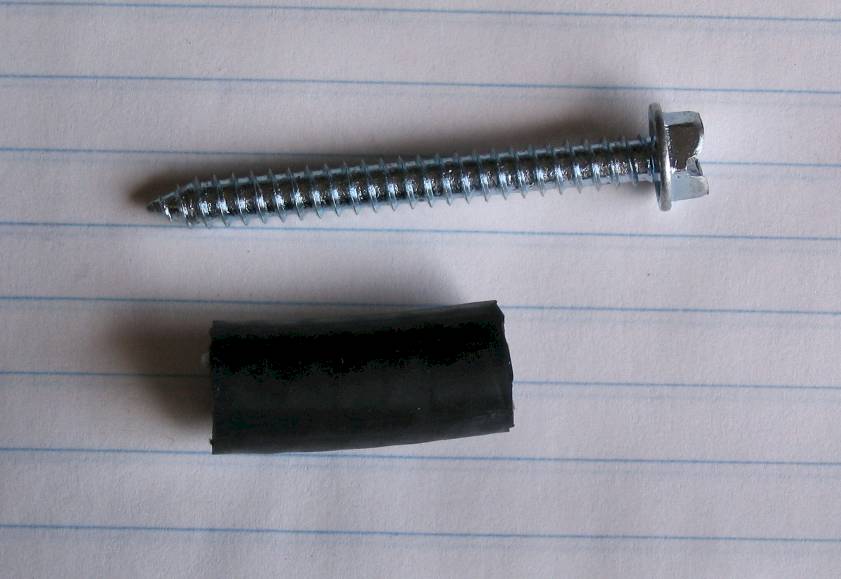

To mount the upper, inner location I used a 12 x 2" screw and a piece of 1/4" fuel line cut to 28mm.


Why 28mm? Good question. I measured the gap between the bracket and radiator location and came up with 28mm -- this was by no means an exact measurement! Your distance could vary. If the hose doesn't touch both sides then make it long enough so it will touch.

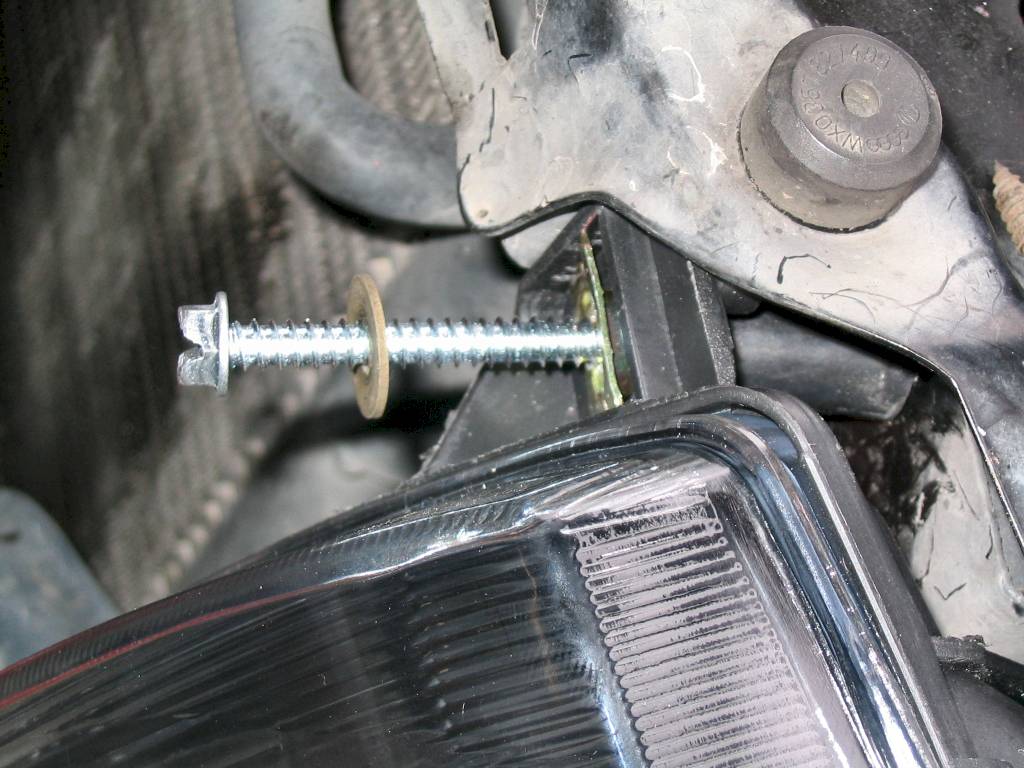

Insert hose behind mount and thread screw in. I recommend a washer as pictured but it's not absolutely necessary.

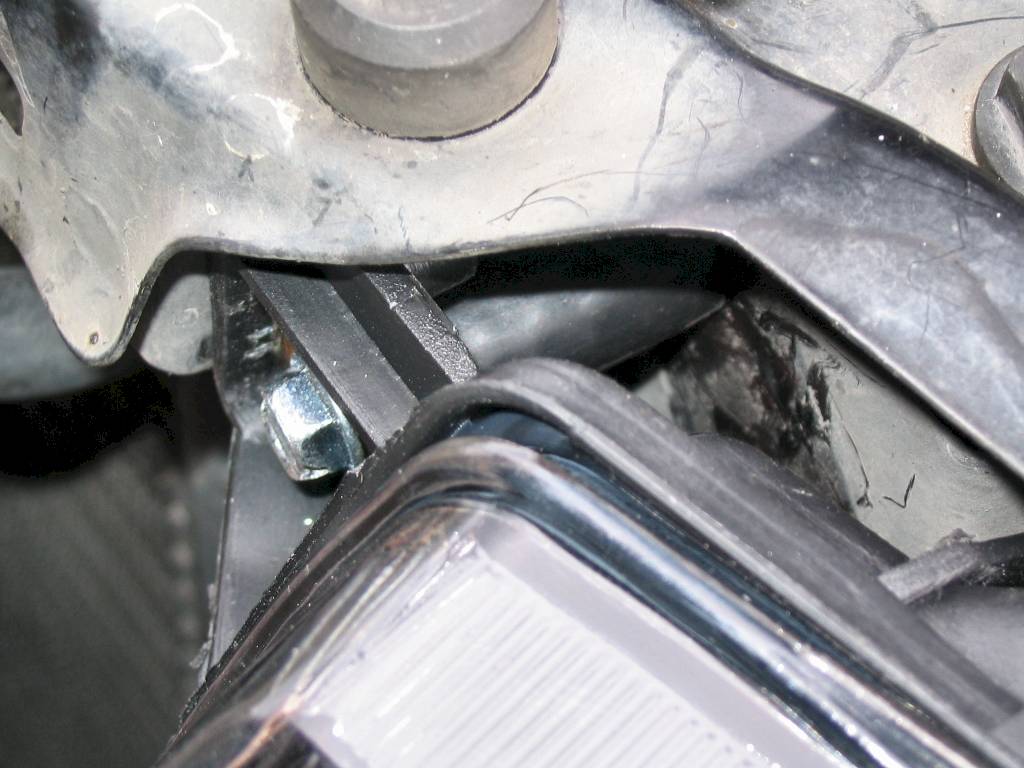

Snug screw just so the hose begins to buckle. Don't tighten too much otherwise the e-code mount will bend too much and become weakened.
