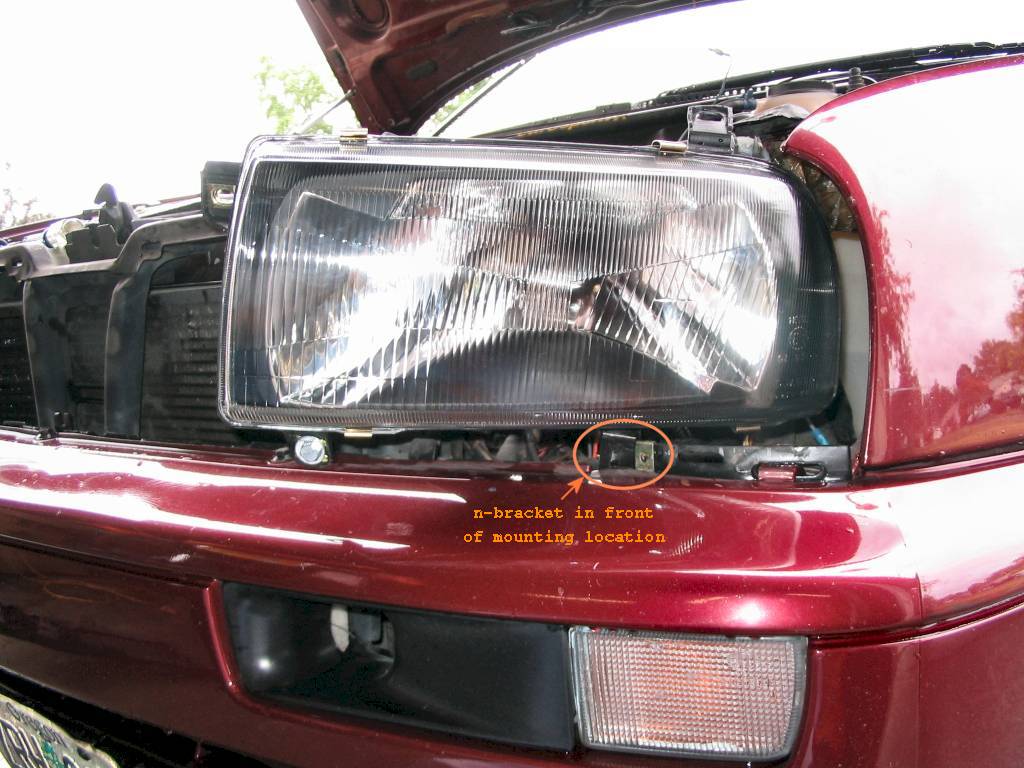

Photo sequence for installing the e-code. Make sure n-bracket is in FRONT of mounting location.

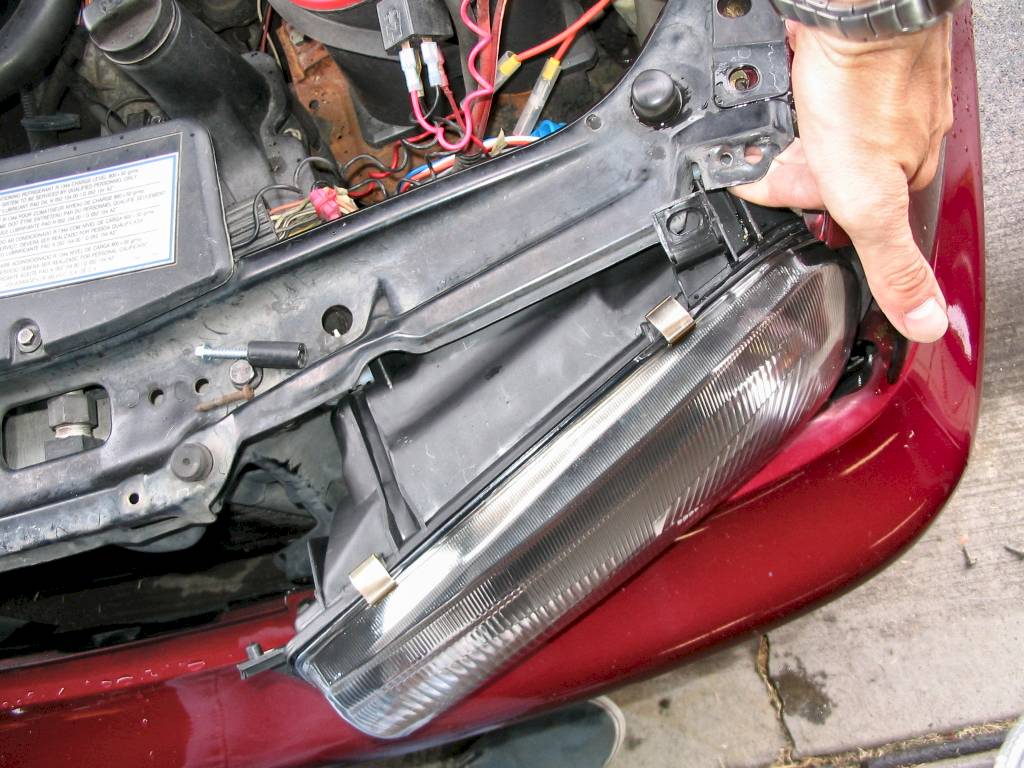

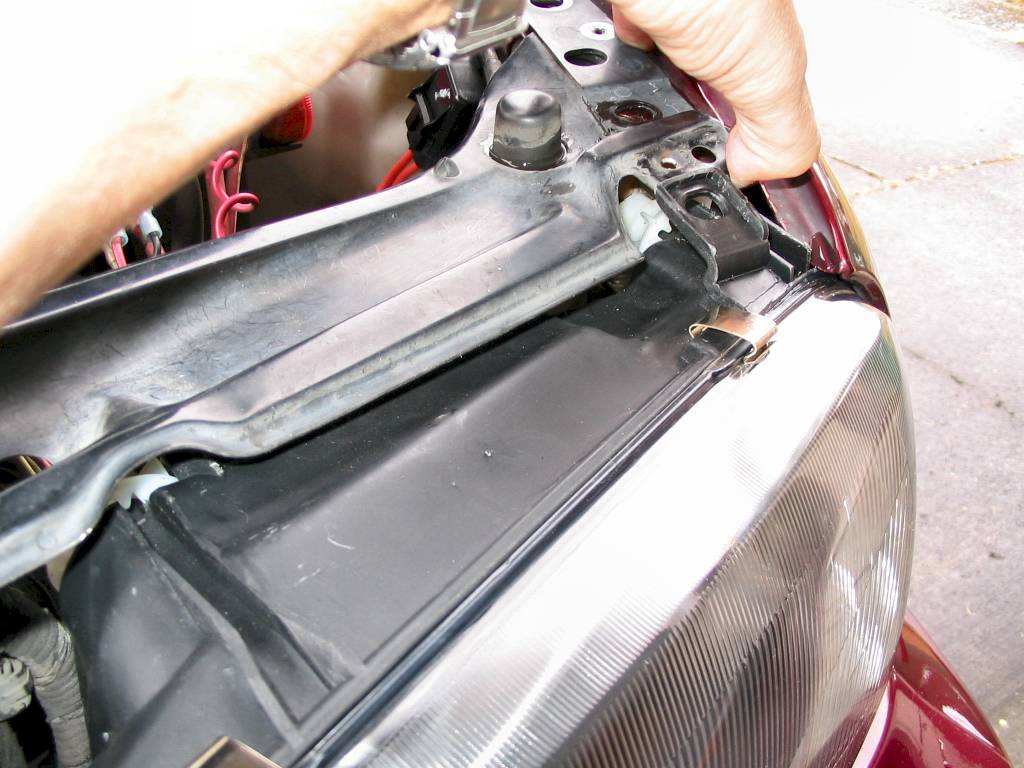

You'll likely need to do a lot of lifting of the radiator support to get the damn thing in!




n-bracket is still in front of the mounting location.

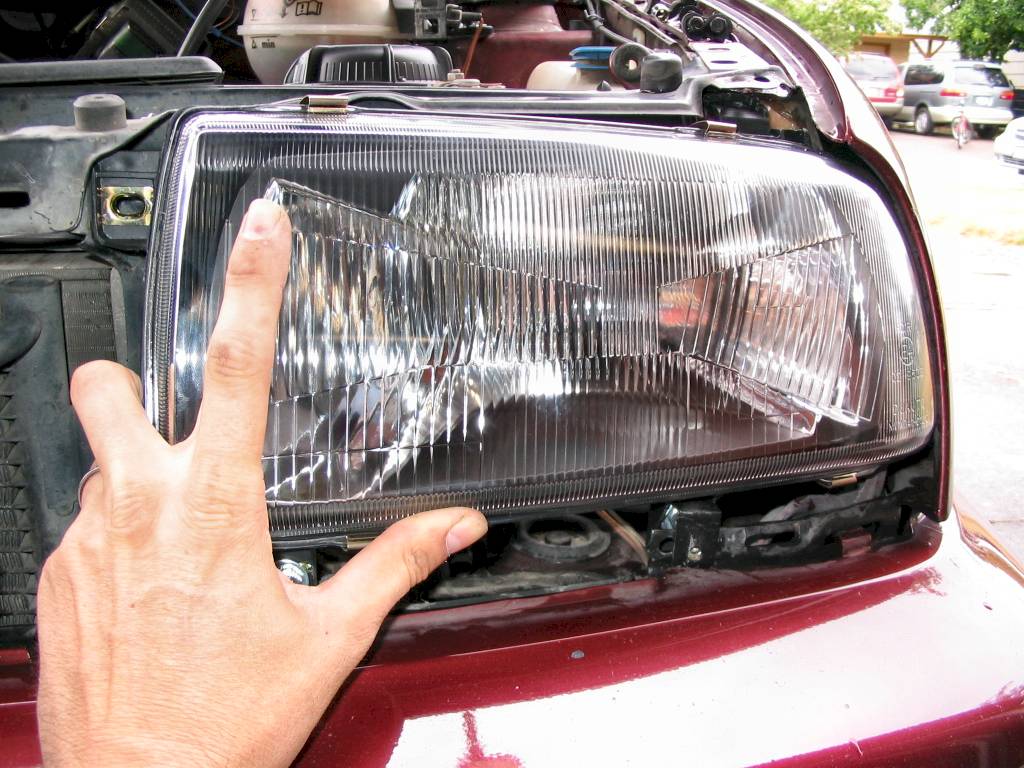

Loosely mount the light. Use the original mounting location and screw to secure S-bracket.

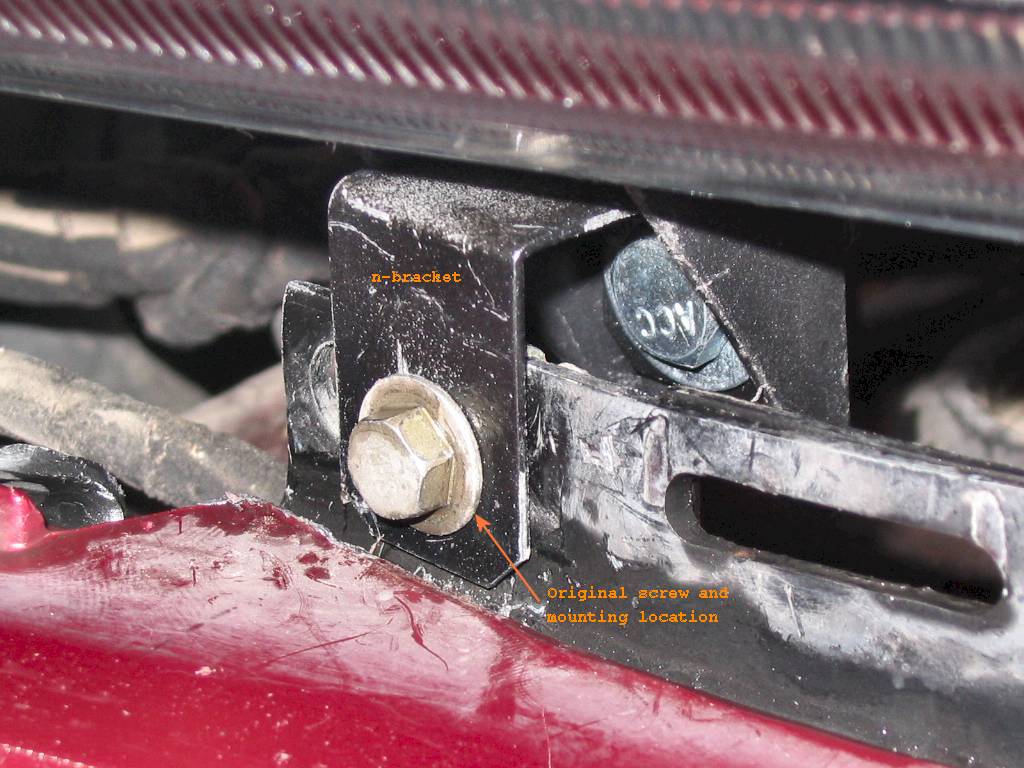

Use original mounting hole location and screw to mount n-bracket.
