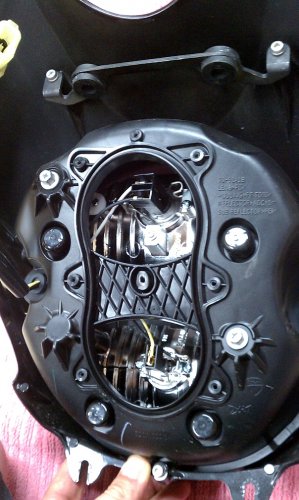

Remove the headlight and place on a thick towel.  The low-beam is at the top of the headlight, which is the top of this picture.  This shows the back removed and the bulb area exposed -- there are 7 screws that hold the back on.  The greyish-silver bolt at the 11 o'clock position on the outside edge is the headlight vertical adjustment.  To get more operating space inside the housing I rotated mine anti-clockwise 6 turns.  Make sure you mark the bolt with a spot on the housing so you know where to return it when everything is all installed.

Remove the headlight and place on a thick towel. The low-beam is at the top of the headlight, which is the top of this picture. This shows the back removed and the bulb area exposed -- there are 7 screws that hold the back on. The greyish-silver bolt at the 11 o'clock position on the outside edge is the headlight vertical adjustment. To get more operating space inside the housing I rotated mine anti-clockwise 6 turns. Make sure you mark the bolt with a spot on the housing so you know where to return it when everything is all installed.

6_Before.jpg 6After.jpg IMAG1573.jpg IMAG1574.jpg IMAG1577.jpg IMAG1578.jpg IMAG1579.jpg
